Masterix, Fully Automatic Wax Injector MI-03

Fully Automatic Wax Injector

feature that makes the only MI-03 in the market, is to work on a continuous cycle through a charger of vertical molds, loading and
fully automatic unloading and cooler for the molds, integrated in the  machine. It is the first and only automatic injector to be covered by
international patent pending.

Technical Advantages
1.  The molds also of different sizes, are automatically loaded into the clamp, the working cycle is started automatically. The operator
must not press any button. Fast and simple.

2. The clamp center the mould. The parameters of the mould are set previously, or automatically read the RFID tags, if present in
the mould. Substantial time savings.

3. The mould is automatically injected according to the set parameters. Easy for the operator.

4. The mould is rotated and automatically downloaded to the cooler, in front of the operator. Immediate and compact.

5. The cooler maintains constant the temperature of the moulds, cooling the waxes. You can set the temperature of the cooler
directly on the touch screen.

Economic Benefit
Elimination of waiting times and consequent reduction of operator’s
downtime. Increase of production
High increase of production, high quality of wax models produced,
elimination of waste.
Recommended for inexperienced operators

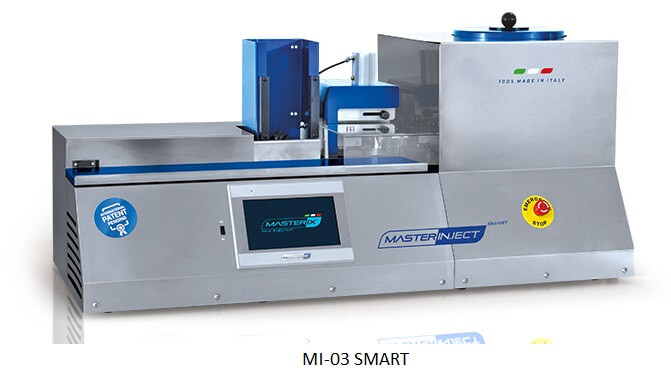

Features MI-03 SMART:

Fully automatic wax injector for single or dual operator, equipped with aluminum tank (capacity 4,5 Kg), injection system by piston of 10 cm³, touch screen of 7”, RFID reader and writer, self-centering  clamp (Size Plate 100x100x50 mm), automatic loader and unloader moulds (Size 100x100 mm), cooling system for moulds and pump included VAP14

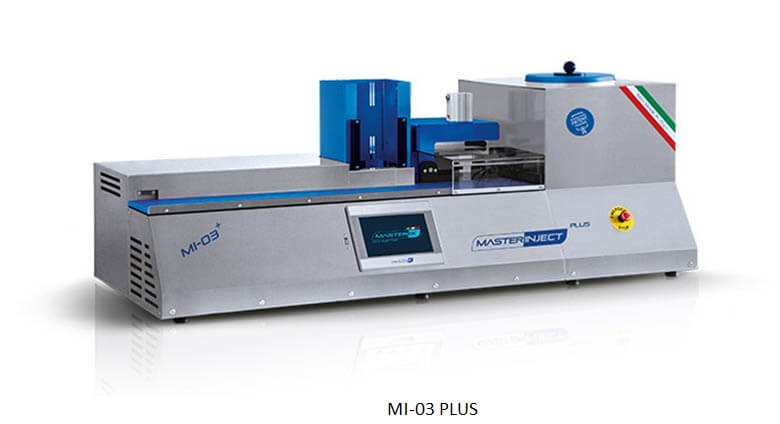

Features MI-03 plus:

Fully automatic wax injector for single or dual operator, equipped with aluminum tank (capacity 4,5 Kg), injection system by piston of 25 cm³, touch screen of 7”, RFID reader and writer, self-centering  clamp (Size Plate 150x130x55 mm), automatic loader and unloader moulds ( Size 150x130 mm ), cooling system for moulds and pump included VAP18.
