  • Simultaneous work with 2 or 4 stone-setters
  • Fast and steady setting with light vacuum pen
  • Homogeneous stone temperature
  • Built-in vacuum pump
  • Digital temperature display
  • Easy to use and maintain

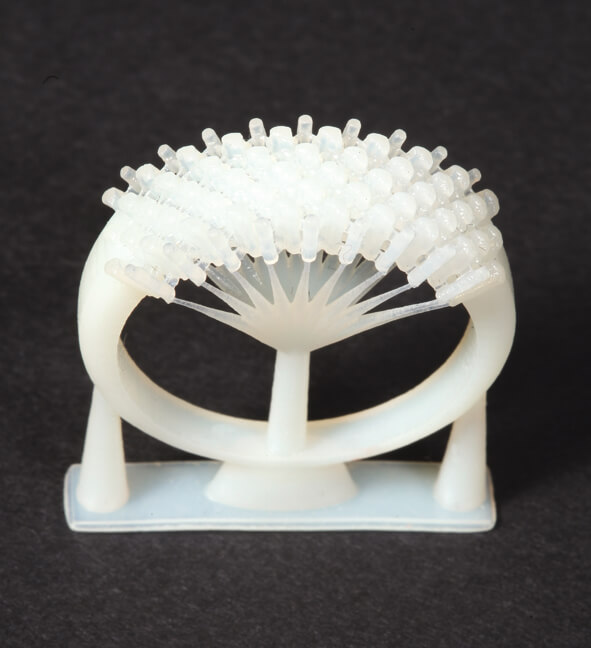

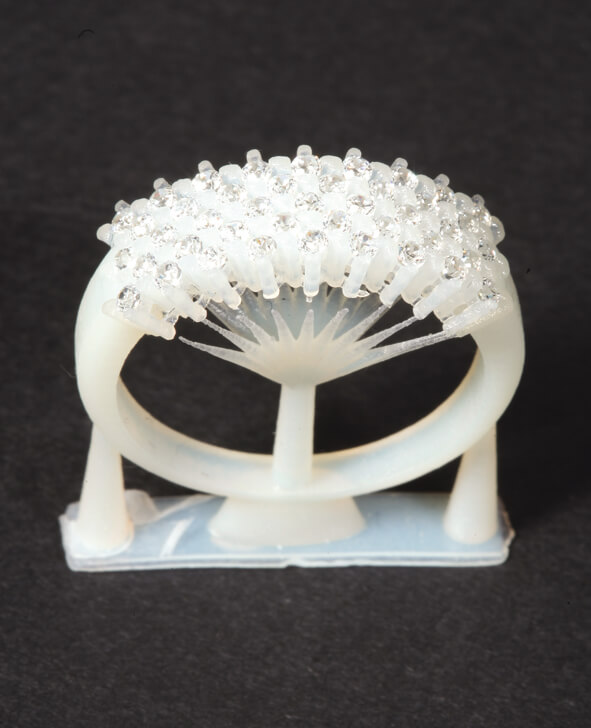

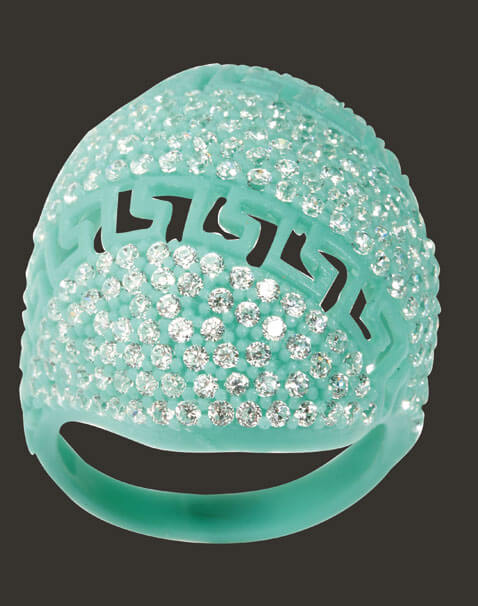

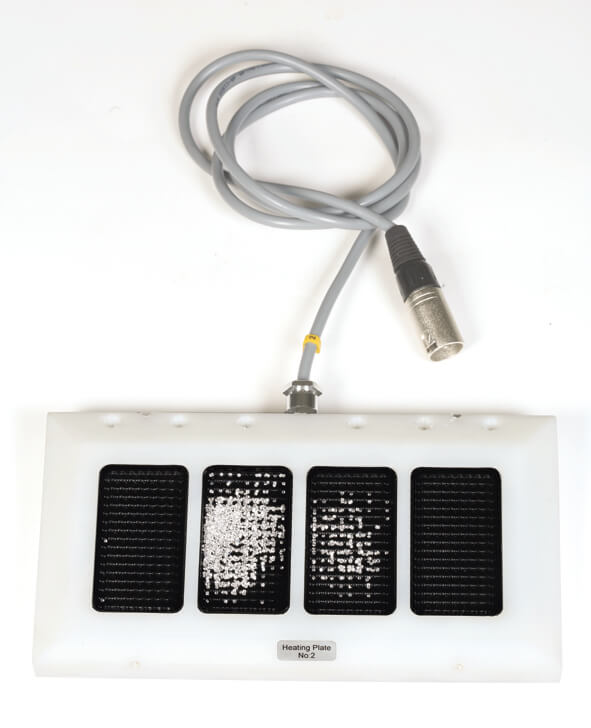

This device is a perfect solution for the wax setting system. Stones are warmed up on a specially designed heating plate and picked up with the built-in vucuum pen. This makes it possible to fix the stones directly into the wax or resin pattern by melting the surface of the wax. The temperature of the heating plate is condrolled digitally in order to avoid destroying the wax or resin pattern due to excessive heat.

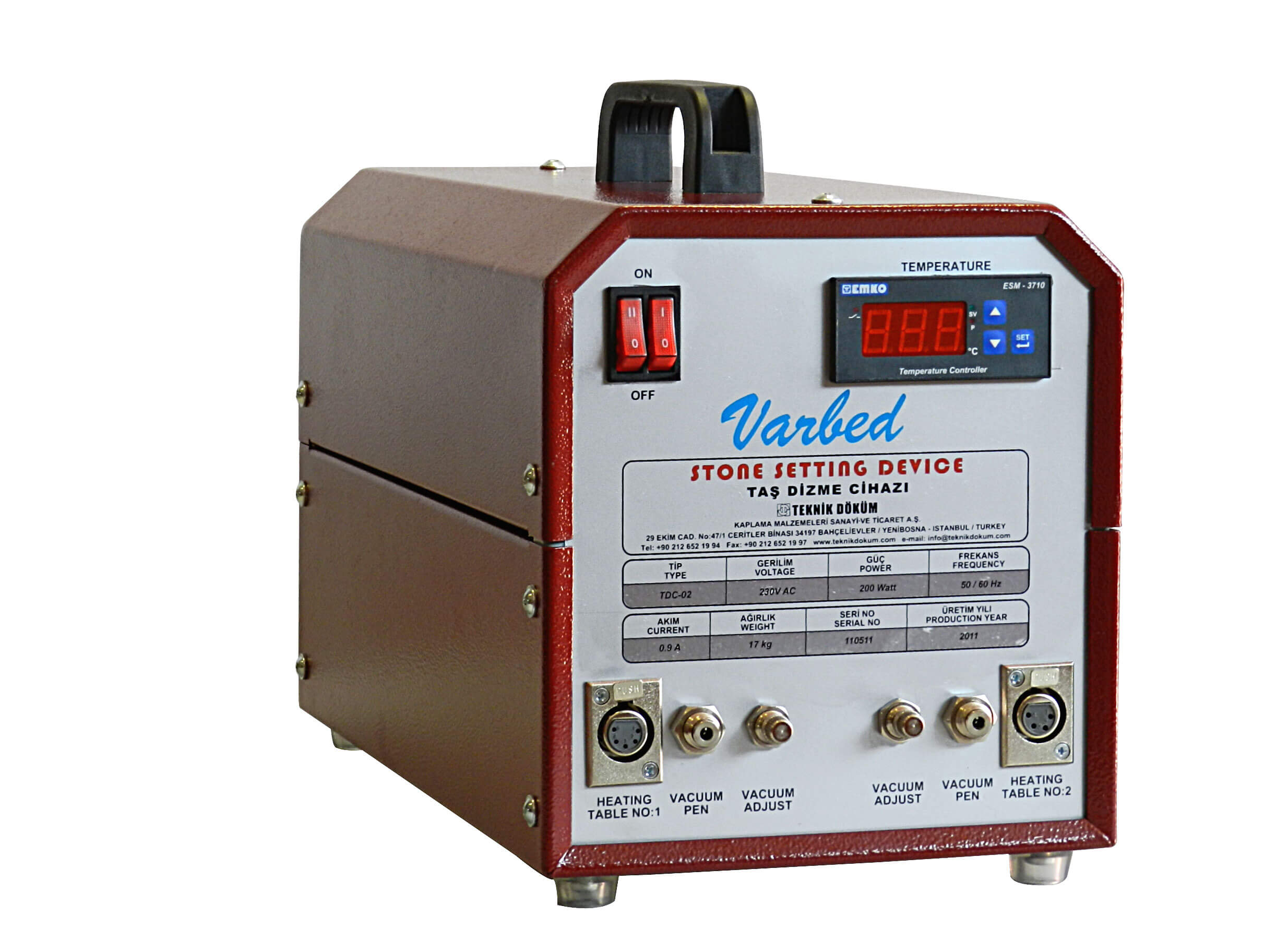

It is an easy to use electrical device with three control switches (on-off, heating, and vacuum) and it does not require any external vacuum pump.



PDF CATALOG DOWNLOAD
Model TDC-02
Maximum working temperature 100 °C
Stone tray dimensions 4x7 cm (4 ad./pcs.)
Power (with 2 healting tables) 230 W
Voltage 230V AC
Current 1,2 A
Frequency 50/60 Hz
Dimensions (wxLxh) 20x43x27
Weight 19 kg
